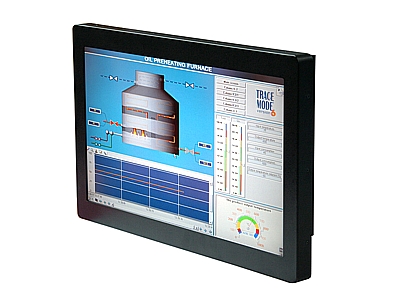

APC-3228A Industrial Panel PC
Features :
High Performance Slim Type
21.5" Industrial Panel PC, Resistive touch option
Intel GM45 Socket P Core 2 Duo CPU support up to P8400 2.26GHz
Fanless Design
Support 1 x PCI or PCIe X1 slot
Wide range DC 9~32V
|
|
|
Description
Construction : Black steel front bezel, black steel back cover with aluminu
Display Size : 21.5" TFT-LCD
Panel Resolution : 1920x1080
Display Color : 16.7M
Brightness : 400 cd/m²
Contrast Ratio : 1000:1
Viewing Angle : H:170° / V:160°
VGA connector : 1 x VGA
Backlight MTBF : 30,000 hrs
Mounting : Panel mounting, VESA 100 x100
Power Supply : 9~32V DC
Temperatur Range Operating : 0~50 C° (with HDD) / -10~50 (with Industrial SSD or CF)
Temperatur Range Storage : -20~60 C°
Humidity : 5~90% @40 C°, non-condensing
CPU : Intel socket P Core 2 Duo Processor, support up to P8400 2.2
Memory : 2 x DDR3 SO-DIMM slot, up to 4GB 1066/1333 MHz
Chipset : Intel GM45 + ICH9M
Front Panel Protection : Front panel IP 65
HDD : 1 x 2.5"SATA HDD
|
CF Socket Optional : 1 x Internal CF slot option
LAN : 2 x GbE RJ-45 ports
Serial : 2 x RS-232 DB9 1 x RS-422/485 selectable default RS-485 DB9
USB : 4 x USB 2.0 type A
KB/MS : None
Audio : 1 x MIC-in, Line-out phone jack
Switch : 1 x 3pin DC power connector, 1 x 2pin remote power switch, 2
Bus Expansion : 1 x Mini-PCIe full size on board ,1 x PCI slot default, 1 x
Other Features : Front IP65
Touch Screen : Optional
Type : Analog resistive
Light Transmission : 80%
Power Consumption : Max:70.3W@12V
Driver OS support : Microsoft Windows 7 pro for embedded, Windows embedded stand
|
|
| Additional Information
|
|
|
|
|
|
