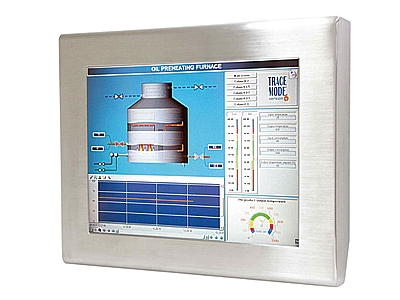

APC-3982 Industrial Panel PC
Features :
19" Industrial Panel PC with Resistive or GFG touch for option
Fanless
Intel® Atom™ D525
IP 65 compliant front
I/O side IP 42 Resistive or GFG touch for option
DC 11~32V wide-range power input
|
|
|
Description
Construction : Stainless Steel Housing
Display Size : 19" TFT-LCD
Panel Resolution : 1280x1024
Brightness : 300 cd/m²
Viewing Angle : H:160° / V:160°
Backlight MTBF : 50,000 hrs
Mounting : VESA 100 x 100 Mount
Power Supply : DC 11~32V
Temperatur Range Operating : 0~50 °C
Temperatur Range Storage : -20~60°C
Humidity : 10~90% @40 °C non-condensing
CPU : Intel Atom D525
Memory : 1 x 204 Pin DDR3 800 MHz SO-DIMM slot, default 2GB
Chipset : Intel ICH8M
Front Panel Protection : Front panel IP65/ 6 sides IP42 with waterproof kit
HDD : 1 x 2.5" SATA HDD
|
CF Socket Optional : 1 x CF Slot (Internal), 1 x CF Slot external (option)
LAN : 2 x RJ-45 LAN
Serial : 1 x DB-15 for RS-232 and RS-422/485 (1 to 2 Ycable); 1 x DB-
USB : 4 x USB 2.0
Bus Expansion : None
Type : Resistive (optional) USB Interface
Light Transmission : 80%
Driver OS support : Windows XP Embedded, Windows Embedded Standard 7
|
|
